Properties

Product codeNN.236612
Orifice Diameter 0.30mm (0.012")
Engagement Length 3.8mm (0.150")

HM Mini Nozzle Tips, N°5 UNF
0.30mm (0.012")

NN.236612

pce

There are 41 variants of this article, view them here >

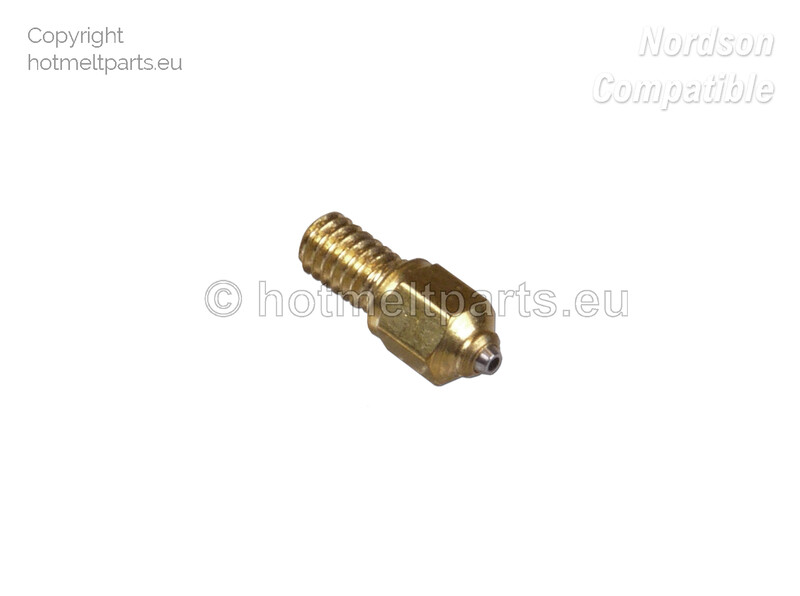

HM Mini Nozzle Tip, N°5 UNF, L 0.150'', 1 x D 0.30mm (0.012)
Single-Orifice Bead Straight, Brass with Hardmetal Insert

- Bead Extrusion : 1 Orifice, Straight
- Engagement Length : 3.8mm (0.150)
- Orifice Diameter : D 0.30mm (0.012)
- Thread : N°5 UNF Male

Nordson Compatible : Nozzle Series 236XXX

Links & downloads

Download productfiche

Variants

Filter 41 of 41 visible.

Product code	Orifice Diameter
NN.236003	HM Nozzle, Mini Insert N°5UNF, L 0.300, 1 x 0.30 mm (0.012)	0.30mm (0.012")
NN.236005	HM Mini Nozzle Tip, N°5 UNF, L0.300, 1 x 0.35 mm (0.014)	0.35mm (0.014")
NN.236008	HM Mini Nozzle Tip, N°5 UNF, L0.300, 1 x 0.40 mm (0.016)	0.40mm (0.016")
NN.236012	HM Mini Nozzle Tip, N°5 UNF, L0.300, 1 x 0.43 mm (0.017)	0.43mm (0.017")
NN.236018	HM Mini Nozzle Tip, N°5 UNF, L0.300, 1 x 0.45 mm (0.018)	0.45mm (0.018")
NN.236027	HM Mini Nozzle Tip, N°5 UNF, L0.300, 1 x 0.53 mm (0.021)	0.50mm (0.020")
NN.236040	HM Mini Nozzle Tip, N°5 UNF, L0.300, 1 x 0.60 mm (0.024)	0.60mm (0.024")
NN.236060	HM Mini Nozzle Tip, N°5 UNF, L0.300, 1 x 0.70 mm (0.028)	0.70mm (0.028")
NN.236070	HM Mini Nozzle Tip, N°5 UNF, L0.300, 1 x 0.75 mm (0.030)	0.75mm (0.030")
NN.236080	HM Mini Nozzle Tip, N°5 UNF, L0.300, 1 x 1.00 mm (0.040)	1.00mm (0.040")
NN.236208	HM Mini Nozzle Tip, N°5 UNF, L0.050, 1 x 0.20 mm (0.008)	0.20mm (0.008")
NN.236210	HM Mini Nozzle Tip, N°5 UNF, L0.050, 1 x 0.25 mm (0.010)	0.25mm (0.010")
NN.236212	HM Mini Nozzle Tip, N°5 UNF, L0.050, 1 x 0.30 mm (0.012)	0.30mm (0.012")
NN.236214	HM Mini Nozzle Tip, N°5 UNF, L0.050, 1 x 0.35 mm (0.014)	0.35mm (0.014")
NN.236216	HM Mini Nozzle Tip, N°5 UNF, L0.050, 1 x 0.40 mm (0.016)	0.40mm (0.016")
NN.236218	HM Mini Nozzle Tip, N°5 UNF, L0.050, 1 x 0.45 mm (0.018)	0.45mm (0.018")
NN.236220	HM Mini Nozzle Tip, N°5 UNF, L0.050, 1 x 0.50 mm (0.020)	0.50mm (0.020")
NN.236224	HM Mini Nozzle Tip, N°5 UNF, L0.050, 1 x 0.60 mm (0.024)	0.60mm (0.024")
NN.236310	HM Mini Nozzle Tip, N°5 UNF, L0.075, 1 x 0.25 mm (0.010)	0.25mm (0.010")
NN.236312	HM Mini Nozzle Tip, N°5 UNF, L0.075, 1 x 0.30 mm (0.012)	0.30mm (0.012")
NN.236314	HM Mini Nozzle Tip, N°5 UNF, L0.075, 1 x 0.35 mm (0.014)	0.35mm (0.014")
NN.236316	HM Mini Nozzle Tip, N°5 UNF, L0.075, 1 x 0.40 mm (0.016)	0.40mm (0.016")
NN.236318	HM Mini Nozzle Tip, N°5 UNF, L0.075, 1 x 0.45 mm (0.018)	0.45mm (0.018")
NN.236320	HM Mini Nozzle Tip, N°5 UNF, L0.075, 1 x 0.50 mm (0.020)	0.50mm (0.020")
NN.236332	HM Mini Nozzle Tip, N°5 UNF, L0.075, 1 x 0.80 mm (0.032)	0.81mm (0.032")
NN.236412	HM Mini Nozzle Tip, N°5 UNF, L0.100, 1 x 0.30 mm (0.012)	0.30mm (0.012")
NN.236414	HM Mini Nozzle Tip, N°5 UNF, L0.100, 1 x 0.35 mm (0.014)	0.35mm (0.014")
NN.236416	HM Mini Nozzle Tip, N°5 UNF, L0.100, 1 x 0.40 mm (0.016)	0.40mm (0.016")
NN.236418	HM Mini Nozzle Tip, N°5 UNF, L0.100, 1 x 0.45 mm (0.018)	0.45mm (0.018")
NN.236420	HM Mini Nozzle Tip, N°5 UNF, L0.100, 1 x 0.50 mm (0.020)	0.50mm (0.020")
NN.236424	HM Mini Nozzle Tip, N°5 UNF, L0.100, 1 x 0.60 mm (0.024)	0.60mm (0.024")
NN.236612	HM Mini Nozzle Tip, N°5 UNF, L0.150, 1 x 0.30 mm (0.012)	0.30mm (0.012")
NN.236614	HM Mini Nozzle Tip, N°5 UNF, L0.150, 1 x 0.35 mm (0.014)	0.35mm (0.014")
NN.236616	HM Mini Nozzle Tip, N°5 UNF, L0.150, 1 x 0.40 mm (0.016)	0.40mm (0.016")
NN.236618	HM Mini Nozzle Tip, N°5 UNF, L0.150, 1 x 0.45 mm (0.018)	0.45mm (0.018")
NN.236620	HM Mini Nozzle Tip, N°5 UNF, L0.150, 1 x 0.50 mm (0.020)	0.50mm (0.020")
NN.236624	HM Mini Nozzle Tip, N°5 UNF, L0.150, 1 x 0.60 mm (0.024)	0.60mm (0.024")
NN.236630	HM Mini Nozzle Tip, N°5 UNF, L0.150, 1 x 0.75 mm (0.030)	0.75mm (0.030")
NN.236632	HM Mini Nozzle Tip, N°5 UNF, L0.150, 1 x 0.80 mm (0.032)	0.81mm (0.032")
NN.236640	HM Mini Nozzle Tip, N°5 UNF, L0.150, 1 x 1.00 mm (0.040)	1.00mm (0.040")
NN.236660	HM Mini Nozzle Tip, N°5 UNF, L0.150, 1 x 1.50 mm (0.060)	1.50mm (0.060")
